1. Choose your modules now

To pick modules, click on the corresponding image or drag and drop the desired module into the frame.

Signal

20polig-2einheiten

Positions: 20 / Contact diameter-Ø: 0,70mm

Wire cross section:
22/28 AWG /0,08/0,38 mm²

Operating voltage: 200V

Nominal current: 7A [1]

Max. continuous current: 1076 V AC [2]

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

add modules

10polig-1einheiten

Positions: 10 / Contact diameter-Ø: 0,70mm

Wire cross section:
22/28 AWG /0,08/0,38 mm²

Operating voltage: 320V

Nominal current: 7A [1]

Max. continuous current: 1320 V AC [2]

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

add modules

6polig-2einheiten

Positions: 6 / Contact diameter-Ø: 1,30mm

Wire cross section:
18/28 AWG 0,08/1 mm²

Operating voltage: 500V

Nominal current: 12,5A [1]

Max. continuous current: 1730 V AC [2]

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

add modules

5polig-3einheiten

Positions: 5 / Contact diameter-Ø: 2,00mm

Wire cross section:
14-18 AWG/1-2,5 mm²

Operating voltage: 672V

Nominal current: 24A [1]

Max. continuous current: 1959 V AC [2]

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

add modules

192polig-18einheiten

Positions: 192 / Contact diameter-Ø: 0,70mm

[1] According to IEC 61010-1:2010 (VDE 0411-1:2020-03), supply voltage from grid supply circuit (Cat.2)

[2] Determined according to IEC 60512-5-2:2002 (DIN EN 60512-5-2:2003-01) at increased temperature 45 K

add modules

384polig-37einheiten

Positions: 384 / Contact diameter-Ø: 0,70mm

[1] According to IEC 61010-1:2010 (VDE 0411-1:2020-03), supply voltage from grid supply circuit (Cat.2)

[2] Determined according to IEC 60512-5-2:2002 (DIN EN 60512-5-2:2003-01) at increased temperature 45 K

add modules

Power

3polig-4einheiten

Positions: 3 / Contact diameter-Ø: 3,50mm

Wire cross section:
10/14 AWG/ 2,5/6 mm²

Operating voltage: 3260V

Nominal current: 39A [1]

Max. continuous current: 7516 V AC [2]

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

add modules

High current

1polig-8einheiten

Positions: 1 / Contact diameter-Ø: 12,00mm

Wire cross section:
25mm² bis 50mm²

Operating voltage: 2700V

Nominal current: 155A [1]

Max. continuous current: 6388 V AC [2]

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

add modules

2polig-5einheiten

Positions: 2 / Contact diameter-Ø: 5,00mm

Wire cross section:
10/16 mm²

Operating voltage: 611V

Nominal current: 68A [1]

Max. continuous current: 2251 V AC [2]

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

add modules

2polig-9einheiten

Positions: 2 / Contact diameter-Ø: 8,00mm

Wire cross section:
16/25 mm²

Operating voltage: 537V

Nominal current: 105A [1]

Max. continuous current: 1844 V AC [2]

In application with a housing please check the cable space requirement.

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

add modules

Coax

4polig-3einheiten

Positions: 4

Connection: RG 178, RG 196, RG 174, RG 188, RG 316
Center contact crimped / Outer contact crimped

/ 50Ω Coax

Frequency range: 0 – 2,8 GHz

Mating cycles: min. 10.000

add modules

2polig-5einheiten

Positions: 2

Connection: RG 178, RG 196, RG 174, RG 188, RG 316,RG 58, RG 223
Center contact crimped / Outer contact crimped

/ 50Ω Coax

Frequency range: 0 – 4 GHz

Mating cycles: min. 10.000

add modules

2polig-5einheiten

Positions: 2

Connection: SMA Termination

Frequency range: 0 – 12 GHz

Mating cycles: min. 10.000

add modules

2polig-5einheiten

Positions: 2

Connection: RG 178, RG 196, RG 59
Center contact crimped / Outer contact crimped

/ 75Ω Coax

Frequency range: 0 – 2,7 GHz

Mating cycles: min. 10.000

add modules

Pneumatic and fluid module

2polig-5einheiten

Positions: 2 / Contact diameter-Ø: 12,00mm

Connection: Module for fluid coupling, shut-off on both sides, low leakage version
Suitable for the delivery of air, water and other fluids

Max. Pressure: 10 bar

Mating cycles: min. 10.000

add modules

2polig-5einheiten

Positions: 2 / Contact diameter-Ø: 12,00mm

Connection: Inner-Ø of tube max. 4mm, Push-in Ø max. 6mm

Max. Pressure: 10 bar

Mating cycles: min. 10.000

add modules

1polig-12einheiten

Positions: 1

Connection: Inner-Ø of tube max. 16mm

: -0,8 bar

Mating cycles: min. 10.000

add modules

2polig-5einheiten

Positions: 2

Connection: Inner-Ø of tube max. 4mm, Push-in Ø max. 6mm

Max. Pressure: 12 bar

Mating cycles: min. 10.000

add modules

Fiber optic contacts

4polig-3einheiten

Positions: 4

GOF Modul Expanded Beam

This module is supplied assembled with individual cable lengths, please contact us.

add modules

4polig-3einheiten

Positions: 4

GOF PC/APC

This module is supplied assembled with individual cable lengths, please contact us.

add modules

5polig-3einheiten

Positions: 5

Fibre cable contacts for plastic fibre (POF)

Mating cycles: min. 40.000

add modules

Shielded implementation

1polig-6einheiten
Different inserts selectable
Multiposition: 2pol. - 14pol.
1 insert per module

Wire cross section:
20-28 AWG

Application size 1 In application with a housing please check the cable space requirement.

Mating cycles: min. 10.000

max. cable diameter: 7,7 mm

Ethernet 1
USB® 2.0 1
USB 3.1 Gen 1 1
FireWire und CAT 5 SPE 1000BASE-T1 2
Further on request

1 These ODU specific connectors can transmit common data transmission protocols such as USB® 2.0, USB® 3.1 Gen 1 and Ethernet and FireWire and CAT 5 SPE 1000BASE-T1 but they are not USB®- and Ethernet-standard connectors.
[2] Single-Pair-Ethernet according to IEC 63171-6:2020 [IEEE 802.3bp]

add modules

2polig-6einheiten
Different inserts selectable
Multiposition: 2pol. - 14pol.
2 inserts per module

Wire cross section:
20-28 AWG

Application size 1 In application with a housing please check the cable space requirement.

Mating cycles: min. 10.000

max. cable diameter: 7,7 mm

Ethernet 1
USB® 2.0 1
USB 3.1 Gen 1 1
FireWire und CAT 5 SPE 1000BASE-T1 2
Further on request

1 These ODU specific connectors can transmit common data transmission protocols such as USB® 2.0, USB® 3.2 Gen 1x1 and Ethernet and FireWire und CAT 5 SPE 1000BASE-T1 but they are not USB®- and Ethernet-standard connectors.
2 Single Pair Ethernet according to IEC 63171-6(IEEE 802 3bp)
[2] Single-Pair-Ethernet according to IEC 63171-6:2020 [IEEE 802.3bp]

add modules

1polig-7einheiten
Different inserts selectable
Multiposition: 3pol. - 22pol.
1 insert per module

Size 2 max. cable diameter: 9,9 mm In application with a housing please check the cable space requirement.

Mating cycles: min. 10.000

Ethernet 1
HDMI 1 USB® 3.2 1x2, 1 DisplayPort 2.0

1 These ODU specific connectors can transmit common data transmission protocols such as HDMI® and Ethernet, but they are not HDMI®- und Ethernet -standard connectors.

add modules

Combination module

2polig-6einheiten
Different inserts selectable
Multiposition: 2pol. - 14pol.
2 inserts per module

Wire cross section:
20-28 AWG

Application size 1
In application with a housing please check the cable space requirement.

Mating cycles: min. 10.000

max. cable diameter: 7,7 mm

Ethernet 1
USB® 2.0 1
USB® 3.2 Gen 1x1 1
CAT 5 und FireWire SPE 1000BASE-T1 2 Further on request

1 These ODU specific connectors can transmit common data transmission protocols such as USB® 2.0, USB® 3.2 Gen 1x1 and Ethernet and FireWire and CAT 5 but they are not USB®- and Ethernet-standard connectors.
2 Single Pair Ethernet according to IEC 63171-6(IEEE 802 3bp)

add modules

2polig-6einheiten
Different inserts selectable
Multiposition: 2pol. - 14pol.
2 inserts per module

Wire cross section:
20-28 AWG

Application size 1
In application with a housing please check the cable space requirement.

Mating cycles: min. 10.000

max. cable diameter: 7,7 mm

Ethernet 1
USB® 2.0 1
USB® 3.2 Gen 1x1 1
FireWire and CAT 5 SPE 1000BASE-T1 2 Further on request

1 These ODU specific connectors can transmit common data transmission protocols such as USB® 2.0, USB® 3.2 Gen 1x1 and Ethernet and FireWire and CAT 5 but they are not USB®- and Ethernet-standard connectors.
2 Single Pair Ethernet according to IEC 63171-6(IEEE 802 3bp)

add modules

2polig-6einheiten
Different inserts selectable
Multiposition: 2pol. - 14pol.
2 inserts per module

Wire cross section:
20-28 AWG

Application size 1
In application with a housing please check the cable space requirement.

Mating cycles: min. 10.000

max. cable diameter: 7,7 mm

Ethernet 1
USB® 2.0 1
USB® 3.2 Gen 1x1 1
CAT 5 und FireWire SPE 1000BASE-T1 2 Further on request

1 These ODU specific connectors can transmit common data transmission protocols such as USB® 2.0, USB® 3.2 Gen 1x1 and Ethernet and FireWire and CAT 5 but they are not USB®- and Ethernet-standard connectors.
2 Single Pair Ethernet according to IEC 63171-6(IEEE 802 3bp)

add modules

Industrial ethernet RJ45

1polig-7einheiten

Inserts: Idustrial ethernet module (CAT6A)

Positions: 8-way RJ45 field plug

Mating cycles: min. 5.000

Ethernet1
CAT6A1

[1] The contact arrangement of an ODU data transmission connector differs from a standard data transmission connector due to the robust ODU specific design. However, the ODU design meets the electrical specifications of the respective standard data transmission protocol.

add modules

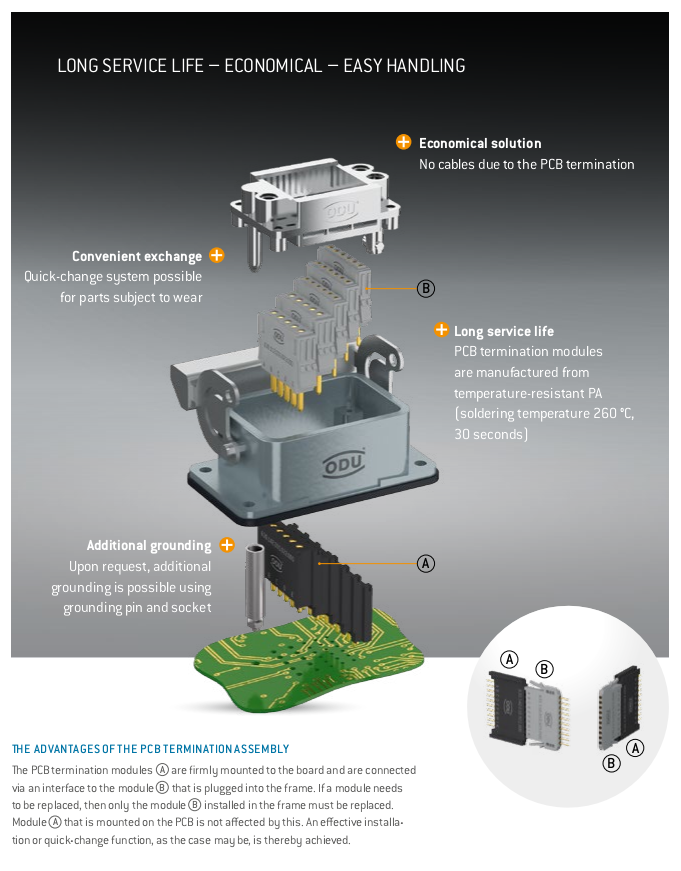

PCB termination

10polig-1einheiten

Positions: 10 / Contact diameter-Ø: 0,70mm

Connection: Print contacts

Operating voltage: 250V

Nominal current: 4,5A [1]

Max. continuous current: 7 V AC [2]

Module incl. contacts

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

Details

add modules

20polig-2einheiten

Positions: 20 / Contact diameter-Ø: 0,70mm

Connection: Print

Operating voltage: 250V

Nominal current: 4,5A [1]

Max. continuous current: 7 V AC [2]

Module incl. contacts

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

Details

add modules

6polig-2einheiten

Positions: 6 / Contact diameter-Ø: 1,30mm

Connection: Print contacts

Operating voltage: 400V

Nominal current: 8A [1]

Max. continuous current: 13 V AC [2]

Module incl. contacts

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

Details

add modules

5polig-3einheiten

Positions: 5 / Contact diameter-Ø: 2,00mm

Connection: Print contacts

Operating voltage: 630V

Nominal current: 16A [1]

Max. continuous current: 25 V AC [2]

Module incl. contacts

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

Details

add modules

Blank modules

PE Modul

1polig-5einheiten

Positions: 1 / Contact diameter-Ø: 8,00mm

Wire cross section:
10mm² bis 25mm²

Nominal current: 125A [1]

ODU LAMTAC® (contact with lamella technology)

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

add modules

High voltage contacs

2polig-5einheiten

Positions: 2 / Contact diameter-Ø: 1,30mm

Wire cross section:
AWG 18 bis 26 / 0,14 bis 1 mm²

Operating voltage: 4000V

Nominal current: 12,5A [1]

Max. continuous current: 19,5 V AC [2]

Mating cycles: min. 10.000

[1] Nominal current
Determined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Determined acc. to IEC 61010-1:2010 [VDE 0411-1:2020-03]

add modules

You didn't find what you are looking for? Feel free to contact our sales office for application specific solutions: Black-Line@odu.de

[1] Nominal currentDetermined acc. to IEC 60512-5-1:2002 (DIN EN 60512-5-1:2003) at a temperature increase of 45 K.

[2] Maximum continuous currentThe metrologically determined current intensity at room temperature (approx. 20° C) that leads to an increase in the contact temperature to the limit temperature. The values specified in this catalogue are valid for single contacts.

[3] High Current/PE and High Current modules only prematurely

Pin and socket will be selected in pairs.

Grounding and pilot-contacts on request.

Mating cycles may vary depending on the version used!

Please refer to our catalogue for technical details..

2. Your selection

Your
ODU-MAC® Black-Line combination

Termination of the grounding-pin through the frame. Grounding and pilot-contacts on request.

3. Cable assembly

Ready-made connectors - Quick & easy

Cable length: mm

Preview:

Simply switch between the horizontal frames of the Black-Line by pressing the two arrow keys.

< 1 / 12 >
5101520253035
5101520253035
5101520253035
5101520253035
5101520253035
5101520253035
5101520253035
5101520253035
5101520253035
5101520253035
5101520253035
5101520253035
Rahmen für 12-Flex TWO M

Frames will be automatically filled with empty modules when you submit your request
